- Model
- AF20-D
- Series
- SMC D Series
- Specific Product Type
- Modular compressed-air filter
- Standard / Custom Product
- Standard / configurable
- Main Application
- Particle and condensate removal
- Metric / Inch Standard
- Rc / G / NPT thread options
- Available Size Range
- Body size 20; ports 1/8 and 1/4 in
- OEM / ODM Availability
- Available for suitable orders
Product Information

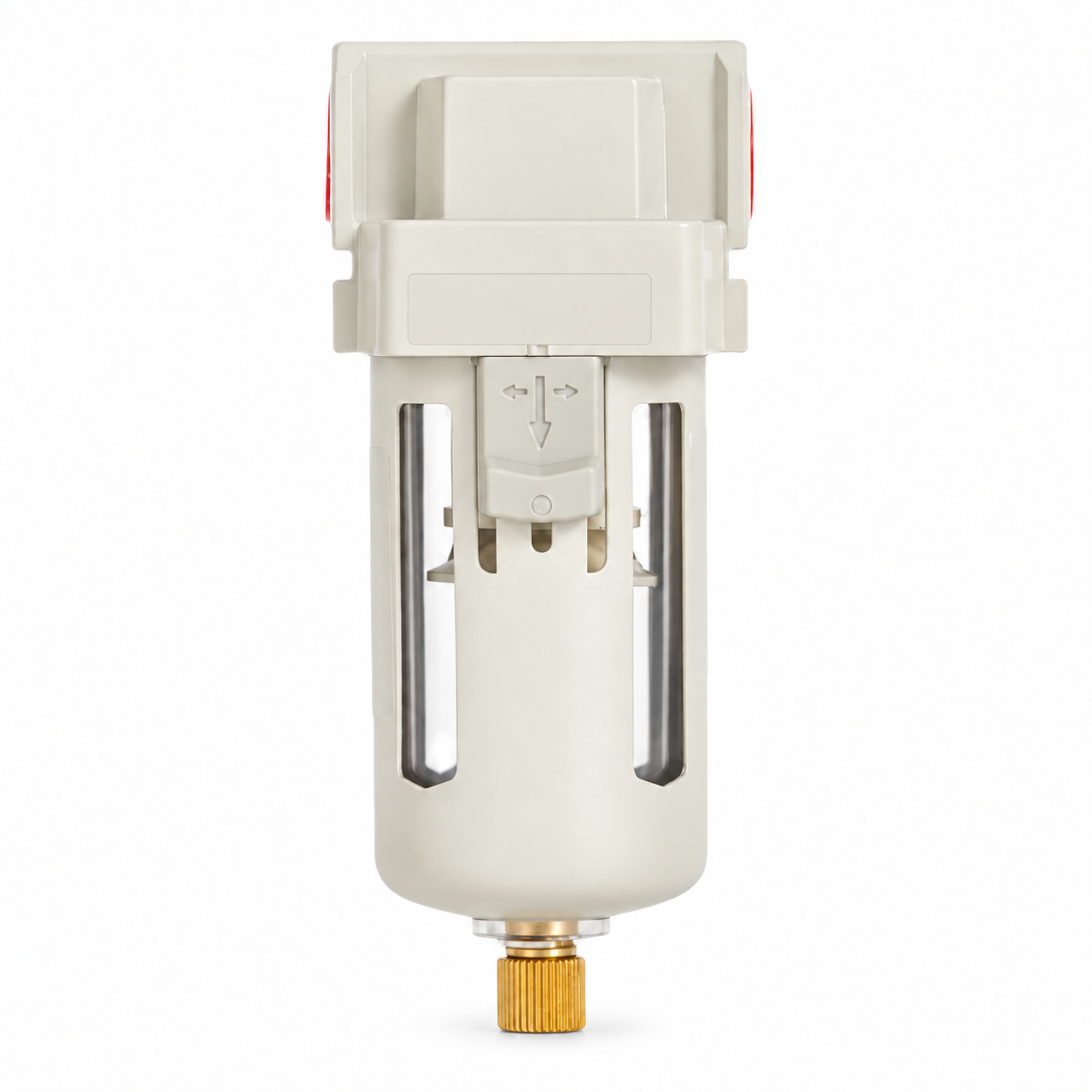

SMC AF-D Series Modular Air Filter
MOQDiscuss by model and quantity
Modular 5 µm air filter for particle and condensate removal in pneumatic lines.
Share the model, quantity, photos or known specifications for confirmation.
Product Overview
Overview
The SMC AF-D series is a modular compressed-air filter with a transparent bowl guard and tool-free element maintenance on common body sizes. It is designed for use alone or as part of an AC-D air preparation assembly.
Product Range
Models & Options
- Model
- AF30-D
- Series
- SMC D Series
- Specific Product Type
- Modular compressed-air filter
- Standard / Custom Product
- Standard / configurable
- Main Application
- Particle and condensate removal
- Metric / Inch Standard
- Rc / G / NPT thread options
- Available Size Range
- Body size 30; ports 1/4 and 3/8 in
- OEM / ODM Availability
- Available for suitable orders
- Model
- AF40-D
- Series
- SMC D Series
- Specific Product Type
- Modular compressed-air filter
- Standard / Custom Product
- Standard / configurable
- Main Application
- Particle and condensate removal
- Metric / Inch Standard
- Rc / G / NPT thread options
- Available Size Range
- Body size 40; ports 1/4, 3/8 and 1/2 in
- OEM / ODM Availability
- Available for suitable orders
Technical Data
Technical Specifications
| Function | Air filter and condensate separator |
|---|---|
| Fluid | Compressed air |
| Filtration | 5 µm |
| Common port range | 1/8 to 1/2 in for selected sizes |
| Configuration | Standalone or modular |
Selection Support
Model Selection Guide
Common body sizes: AF20-D, AF30-D and AF40-D. Confirm the full ordering code, port size, Rc/G/NPT thread, drain method, flow direction and bowl material before quotation.
Application Reference
Applications
- General compressed-air filtration
- Protection of regulators and control valves
- Point-of-use condensate removal
