- Model
- SDA
- Series
- SDA Series
- Specific Product Type
- Compact air cylinder
- Standard / Custom Product
- Standard / configurable
- Main Application
- Short-stroke compact actuation
- Metric / Inch Standard
- Metric
- Available Size Range
- 12-100 mm bore
- OEM / ODM Availability
- Confirm for selected specification and order quantity
Product Information
SDA Series Compact Air Cylinder
MOQConfirm by model and quantity
Low-profile compact cylinder for short-stroke automation where installation depth is limited.
Share the model, quantity, photos or known specifications for confirmation.
Product Overview
Overview

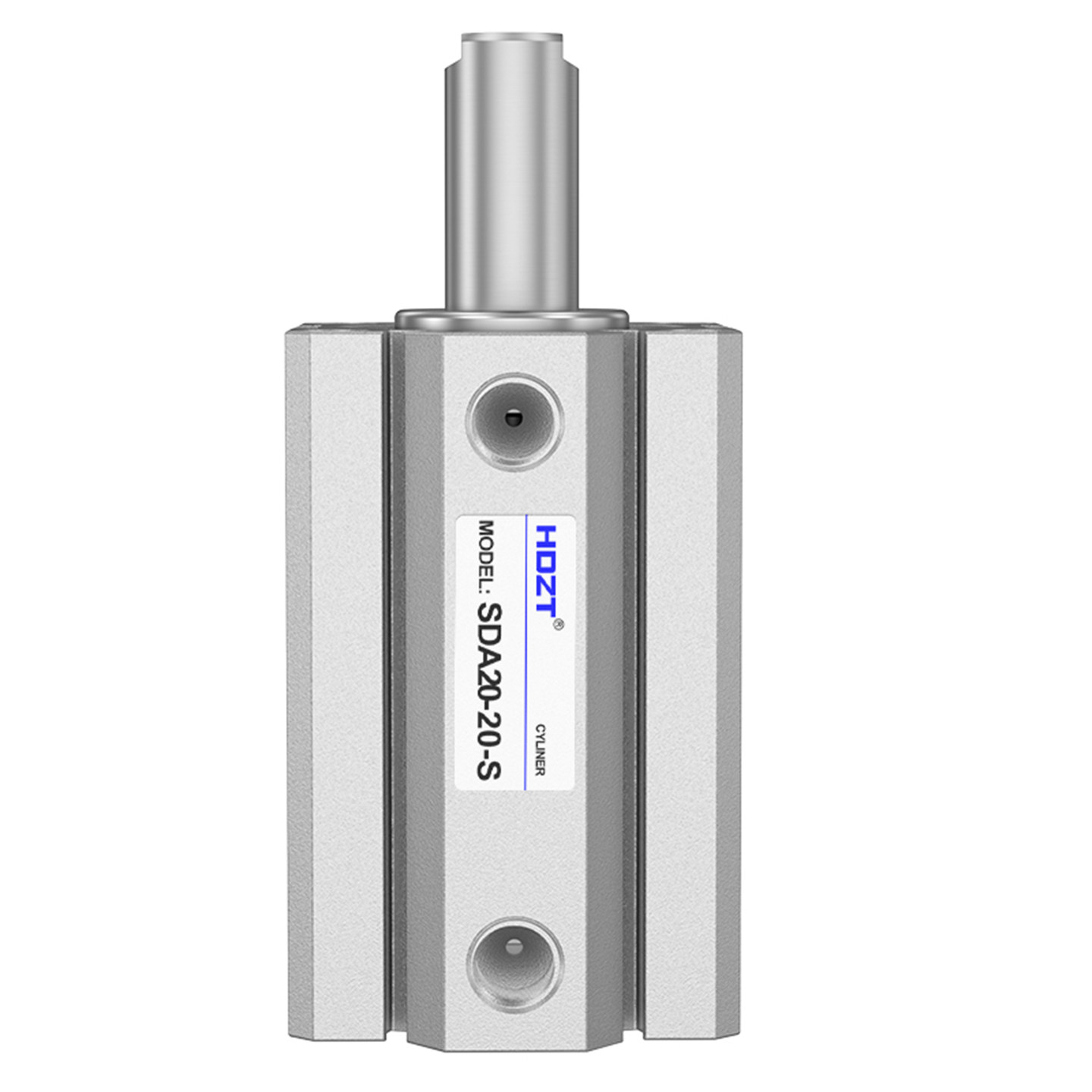

The SDA family uses a compact riveted body with a hard-anodized cylinder bore and integrated switch grooves. Double-acting and single-acting variants are available across a broad bore range.
Product Range
Models & Options
Technical Data
Technical Specifications
| Recommended medium | air filtered to 40 μm. Port sizes vary by bore (M5×0.8, 1/8, 1/4 or 3/8). Action type and stroke options depend on the complete ordering code. |
|---|---|
| Bore Size | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Double-Acting Pressure | 0.15-1.0 MPa |
| Single-Acting Pressure | 0.2-1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Temperature | -20 to 70 °C |
| Double-Acting Speed | 30-500 mm/s |
Selection Support
Model Selection Guide
Specify action type, bore, stroke, thread standard, magnet/sensor option and mounting accessories. Verify allowable load, impact energy and stroke availability for the selected code.
Application Reference
Applications
- Clamping and stopping; short-stroke pressing; packaging machinery; compact transfer, ejector and positioning mechanisms.
