- Model
- MHY2
- Series
- MHY2 Series
- Specific Product Type
- 180° angular air gripper
- Standard / Custom Product
- Standard / configurable
- Main Application
- Wide-angle component gripping
- Metric / Inch Standard
- Metric
- Available Size Range
- 10-25 mm nominal bore
- OEM / ODM Availability
- Confirm for selected specification and order quantity
Product Information

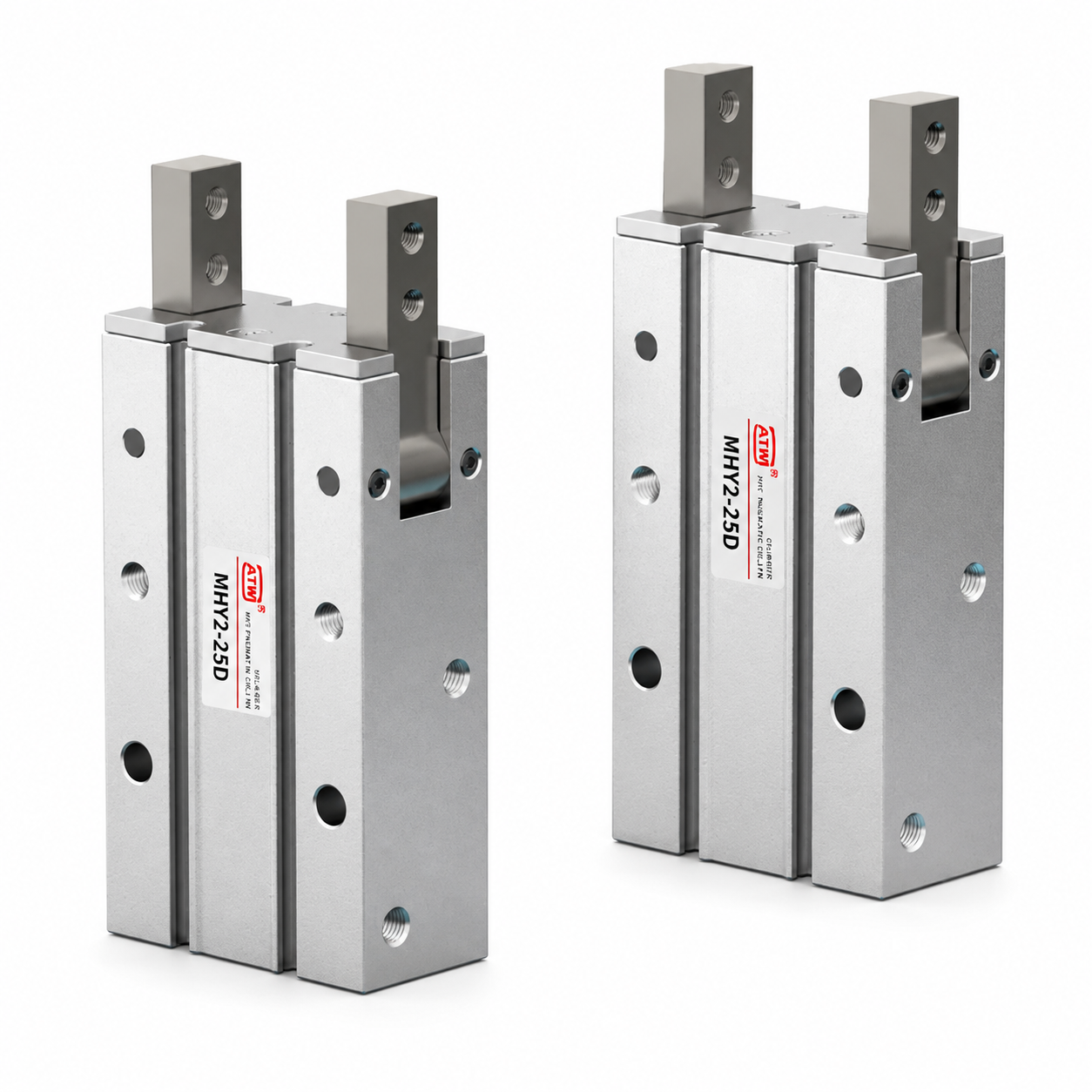

MHY2 Series 180° Angular Air Gripper
MOQConfirm by model and quantity
Compact cam-operated angular gripper providing a 180° opening motion for component handling.
Share the model, quantity, photos or known specifications for confirmation.
Product Overview
Overview
The MHY2 family is a double-acting, cam-type angular gripper with a wide opening angle. It is suited to applications that need fingers to swing away from the work area while maintaining a compact actuator body.
Product Range
Models & Options
Technical Data
Technical Specifications
| Medium | air. Lubrication is not required. Gripping force varies with operating pressure, size and gripping point; external fingers must be designed within the manufacturer's mass and moment limits. |
|---|---|
| Acting Type | Double acting |
| Mechanism | Cam-type angular gripper |
| Bore Size | 10, 16, 20, 25 mm |
| Operating Pressure | 0.1-0.6 MPa |
| Repeatability | ±0.2 mm |
| Maximum Frequency | 60 cycles/min |
| Temperature | -10 to 60 °C |
Selection Support
Model Selection Guide
Specify MHY2 size, finger/tooling design, auto switches and port/fitting requirements. Calculate gripping point, external finger mass and moment before selection.
Application Reference
Applications
- Part handling and transfer; loading/unloading; packaging; assembly automation where a wide finger-opening envelope is useful.
