- Model
- MGPM
- Series
- MGP Series
- Specific Product Type
- Slide-bearing compact guided cylinder
- Standard / Custom Product
- Standard / configurable
- Main Application
- Guided transfer, lifting and clamping
- Metric / Inch Standard
- Metric
- Available Size Range
- 12-100 mm bore
- OEM / ODM Availability
- Confirm for selected specification and order quantity
Product Information

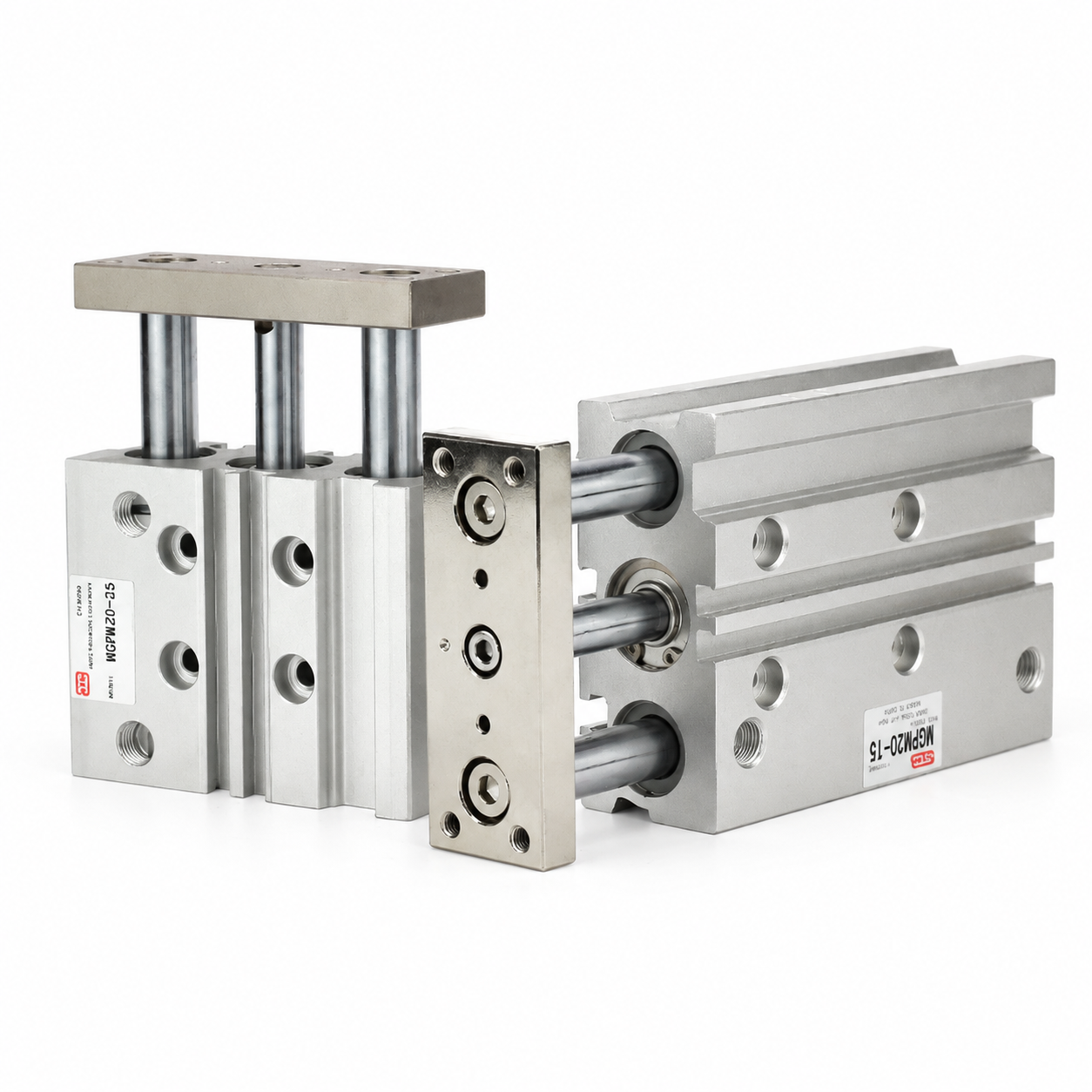

MGPM Series Slide-Bearing Compact Guided Cylinder
MOQConfirm by model and quantity
Compact guided cylinder with slide bearings for loads subject to lateral force and moment.
Share the model, quantity, photos or known specifications for confirmation.
Product Overview
Overview
MGPM identifies the slide-bearing version of the MGP compact guided-cylinder family. Two guide rods and an integrated guide plate combine actuation and guidance in a short package; the guide must still be sized for actual load and moment.
Product Range
Models & Options

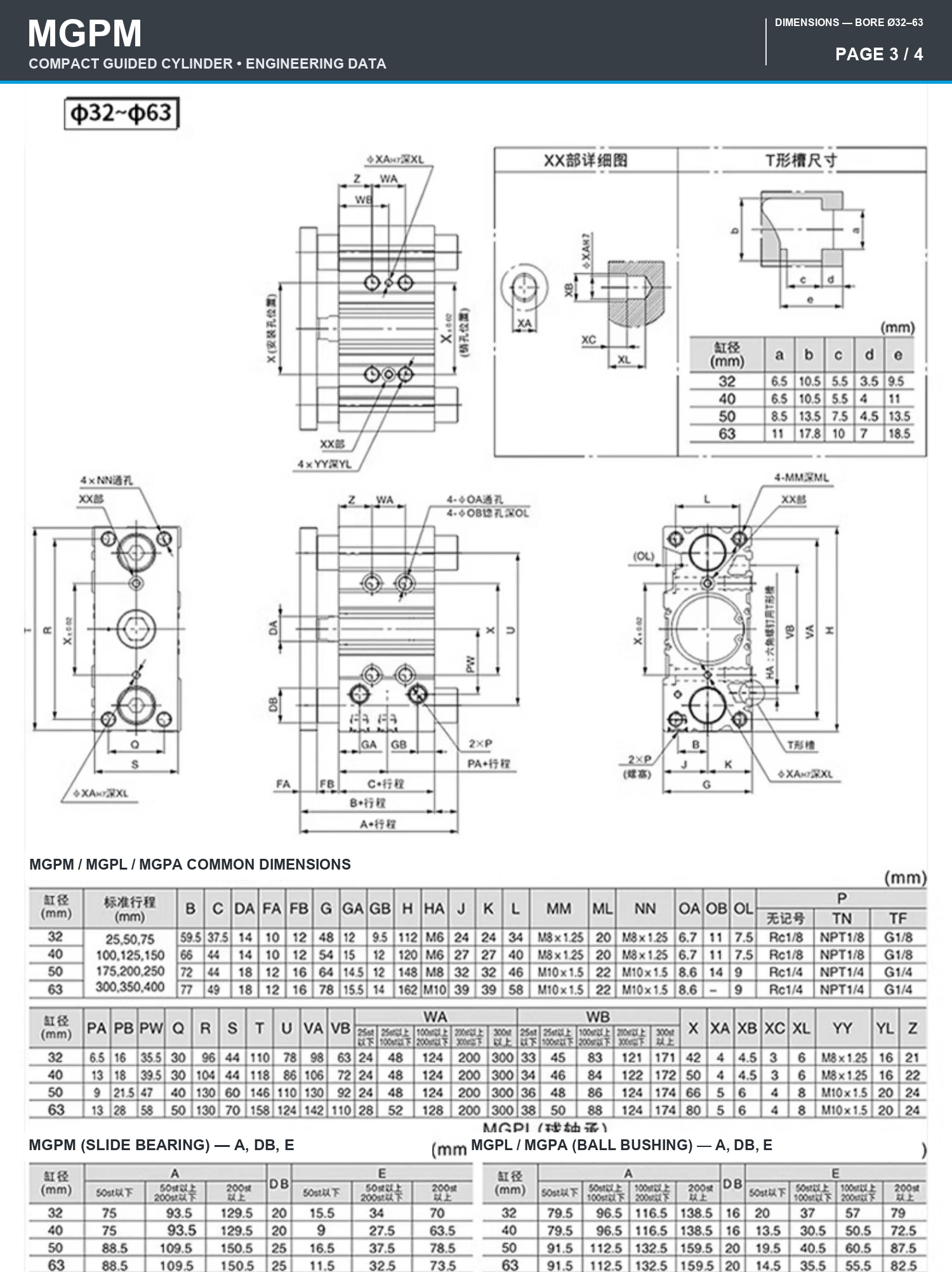

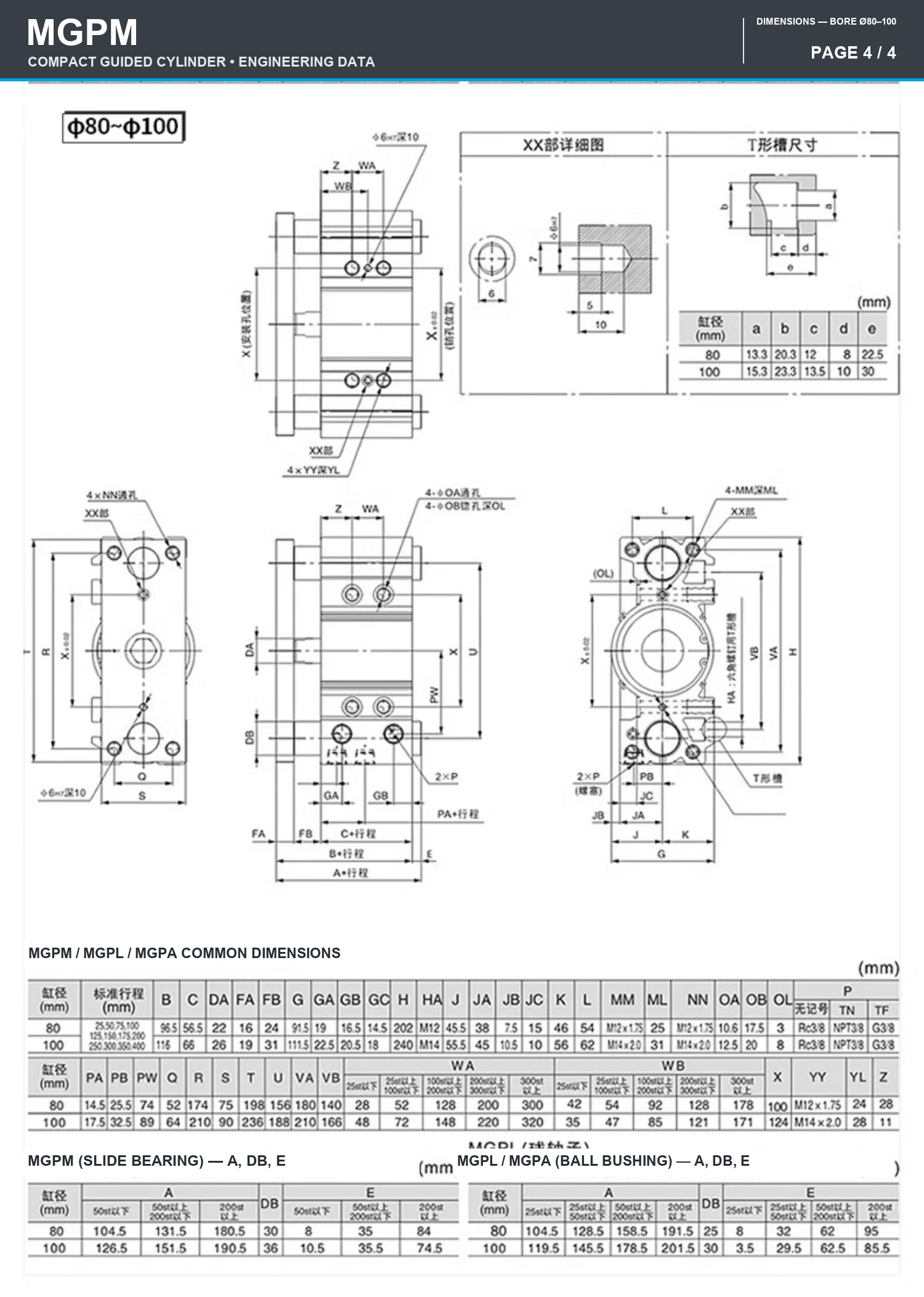

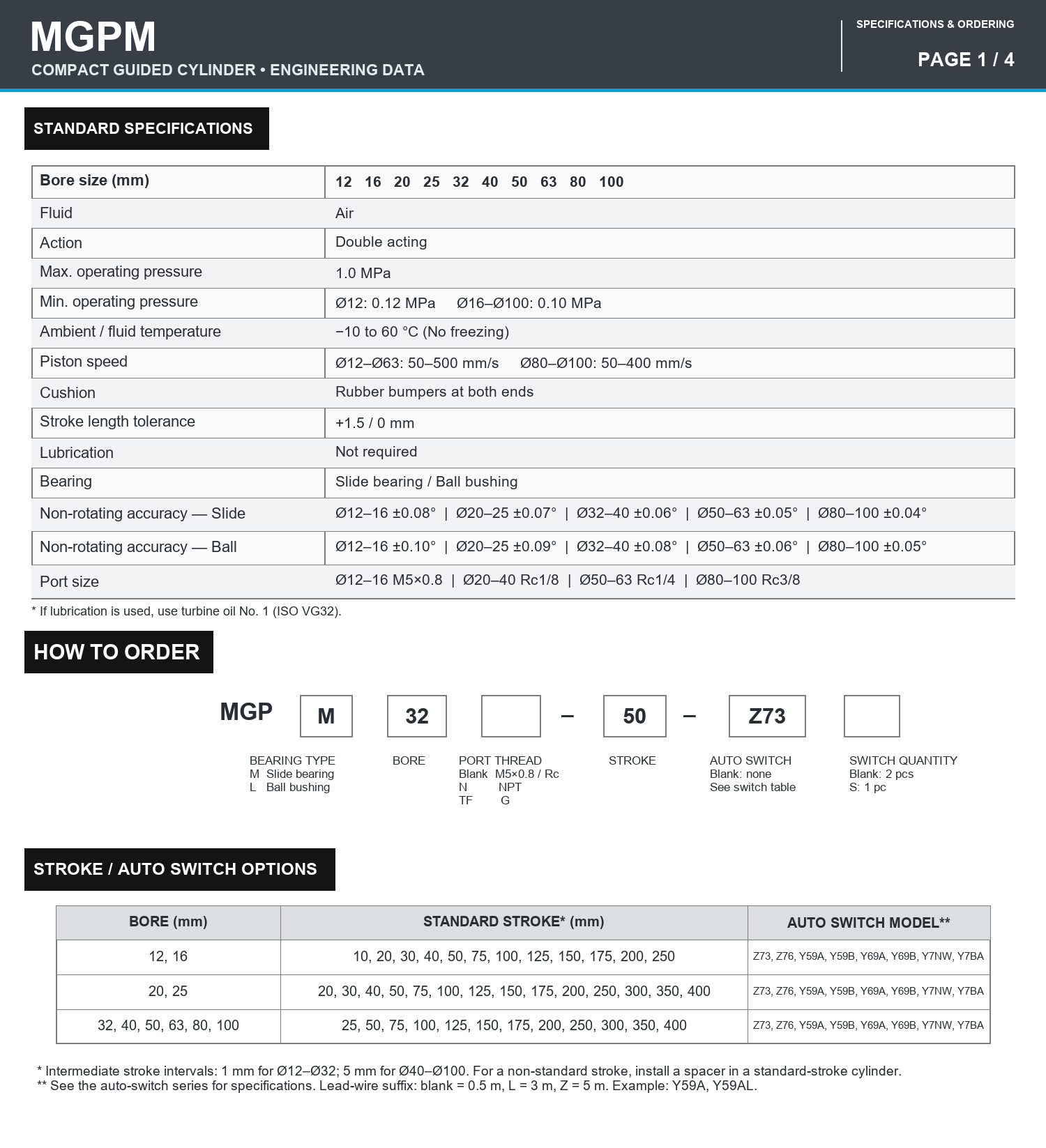

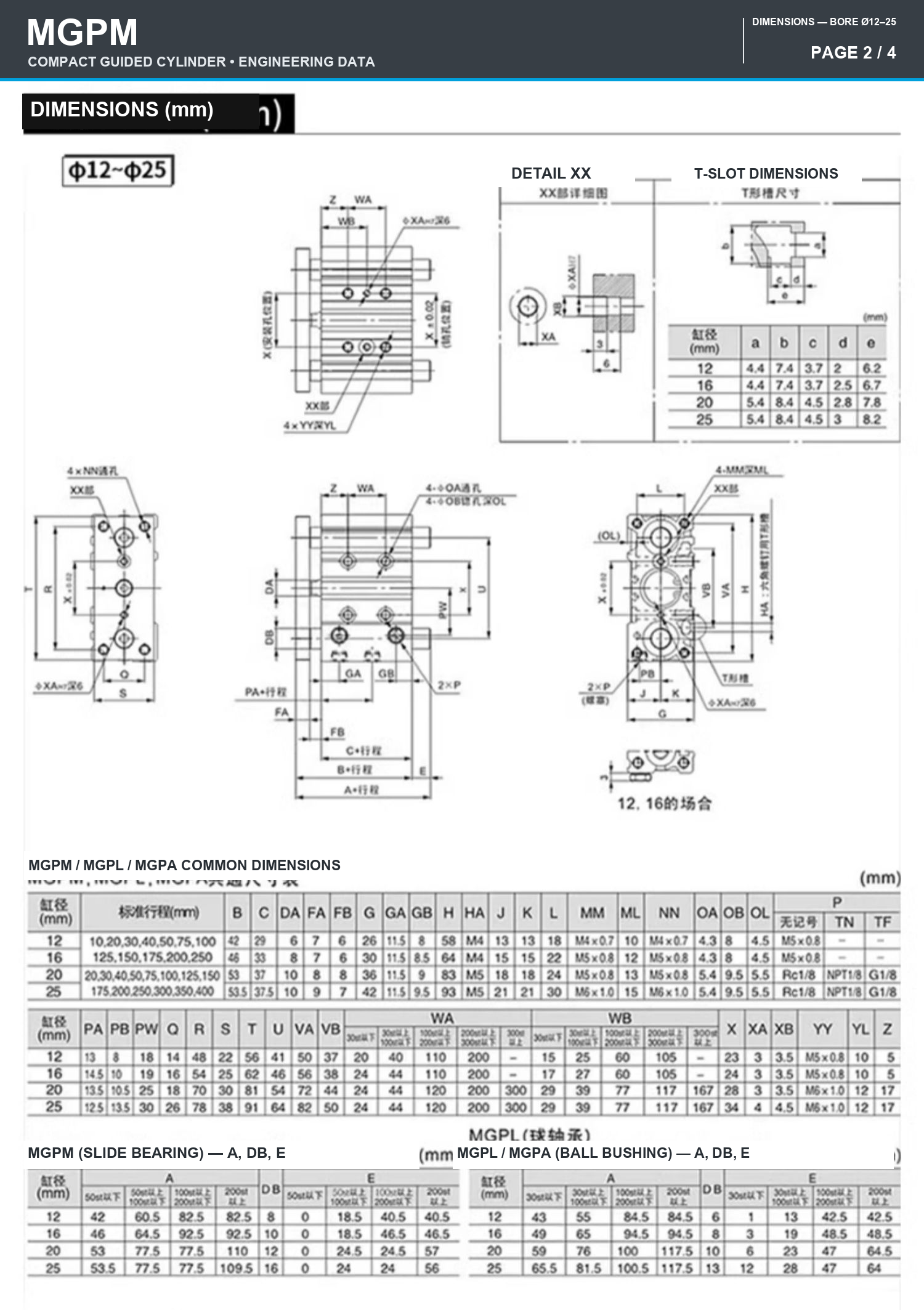

Technical Data
Technical Specifications
| Proof pressure | 1.5 MPa. Piston speed is generally 50-500 mm/s, with lower upper limits on some larger-bore/stroke combinations. Cushion: rubber bumper at both ends. Lubrication is not required. |
|---|---|
| Acting Type | Double acting |
| Bearing Type | Slide bearing |
| Bore Size | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.12 MPa (12/16 mm); 0.10 MPa (20-100 mm) |
| Temperature | -10 to 60 °C |
Selection Support
Model Selection Guide
Specify MGPM, bore, stroke, rod-end/mounting option, piping direction and auto-switch requirements. Validate allowable load, moment, kinetic energy and deflection.
Application Reference
Applications
- Lifting and stopping; compact transfer modules; press and clamp tooling; packaging, assembly and material-handling equipment.
Continue Browsing
Related Products
Guided, Twin-Rod, Slide & Rodless Cylinders
TN Series Twin-Rod Guided Cylinder
Compact twin-rod cylinder combining linear actuation, anti-rotation guidance and end-position adjustment.
View Details →
Guided, Twin-Rod, Slide & Rodless Cylinders
CXSM Series Dual-Rod Slide-Bearing Cylinder
Compact dual-piston, dual-rod cylinder with slide bearings for guided, non-rotating linear motion.
View Details →
Guided, Twin-Rod, Slide & Rodless Cylinders
MGPMJ Series Adjustable-Stroke Compact Guided Cylinder
Manufacturer-specific MGP-style guided cylinder with adjustable end stroke; exact make and drawing must be confirmed.
