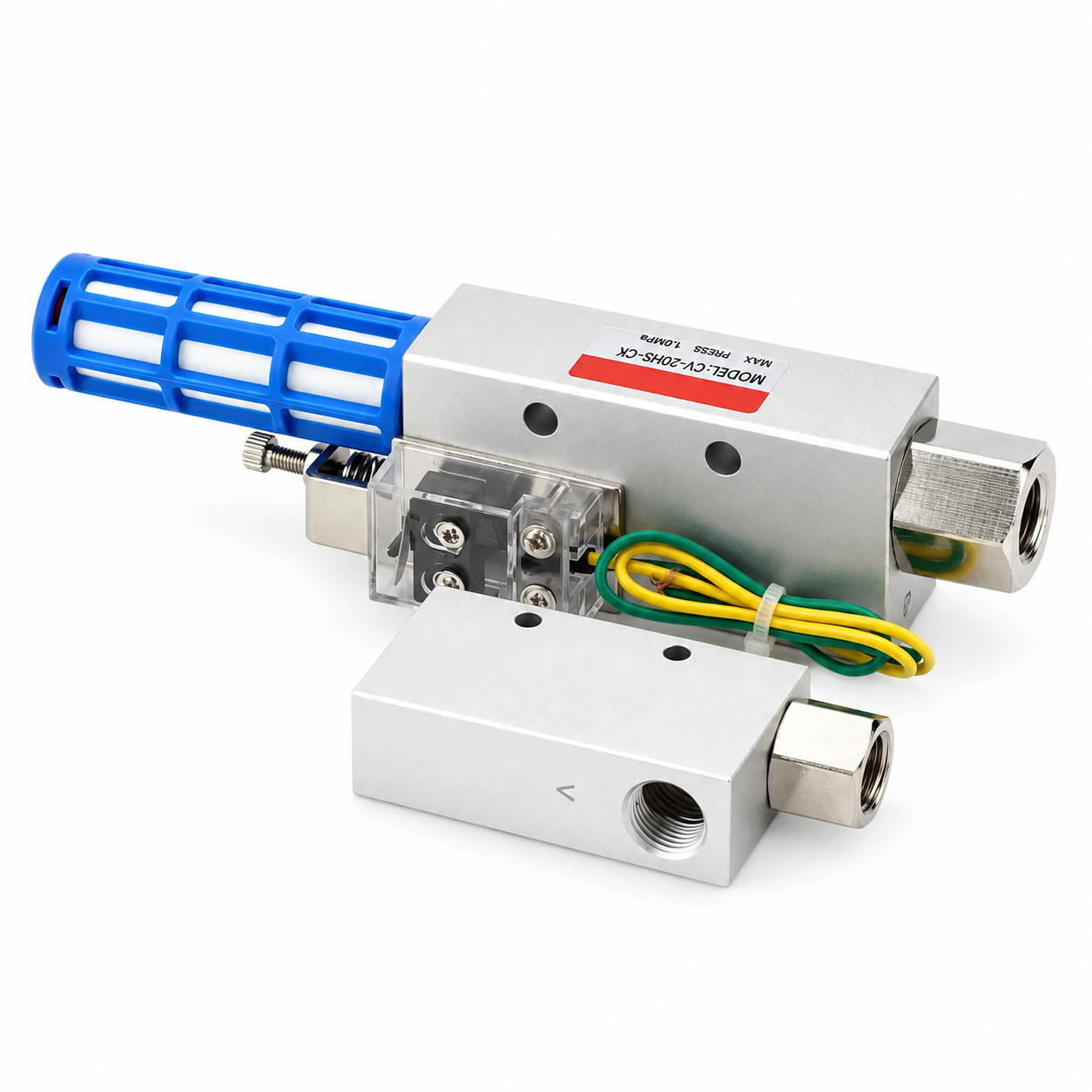

CV Series Vacuum Generators

MOQPlease enquire by model and quantity

CV series vacuum generators for pneumatic suction systems.

Share the model, quantity, photos or known specifications for confirmation.

Product Overview

Overview

CV vacuum generators convert compressed air into suction for automated handling. Select the nozzle size for the required evacuation rate and choose a vacuum-switch option when a feedback signal is needed.

Product Range

Models & Options

The models and ranges below belong to this product family. Final availability and configuration can be confirmed according to your enquiry.

Model Option 01

Model: CV10
Series: CV
Specific Product Type: Vacuum generator
Standard / Custom Product: Standard model selection
Main Application: Pick-and-place equipment
Available Size Range: Nozzle 1.0 mm

Model Option 02

Model: CV15
Series: CV
Specific Product Type: Vacuum generator
Standard / Custom Product: Standard model selection
Main Application: Pick-and-place equipment
Available Size Range: Nozzle 1.5 mm

Model Option 03

Model: CV20
Series: CV
Specific Product Type: Vacuum generator
Standard / Custom Product: Standard model selection
Main Application: Pick-and-place equipment
Available Size Range: Nozzle 2.0 mm

Model Option 04

Model: CV25
Series: CV
Specific Product Type: Vacuum generator
Standard / Custom Product: Standard model selection
Main Application: Pick-and-place equipment
Available Size Range: Nozzle 2.5 mm

Technical Data

Technical Specifications

Vacuum Monitoring	Switch option by model
Connection Selection	Confirm thread and port size when ordering
Medium	Oil-free compressed air
Working Pressure	0.1-0.6 MPa
Operating Temperature	0-60 C, no freezing
Nozzle Diameter	1.0 / 1.5 / 2.0 / 2.5 mm, by model

Selection Support

Model Selection Guide

Specify the complete CV model, nozzle size, thread standard and vacuum-switch option. Confirm the switch setting and electrical rating if a switch is required.
