- Model
- AFR1500
- Series
- AirTAC A Series
- Specific Product Type
- Combined air filter and pressure regulator
- Standard / Custom Product
- Standard / configurable
- Main Application
- Filtration and downstream pressure control
- Metric / Inch Standard
- PT / G / NPT thread options
- Available Size Range
- Port 1/8 in
- OEM / ODM Availability
- Available for suitable orders
Product Information

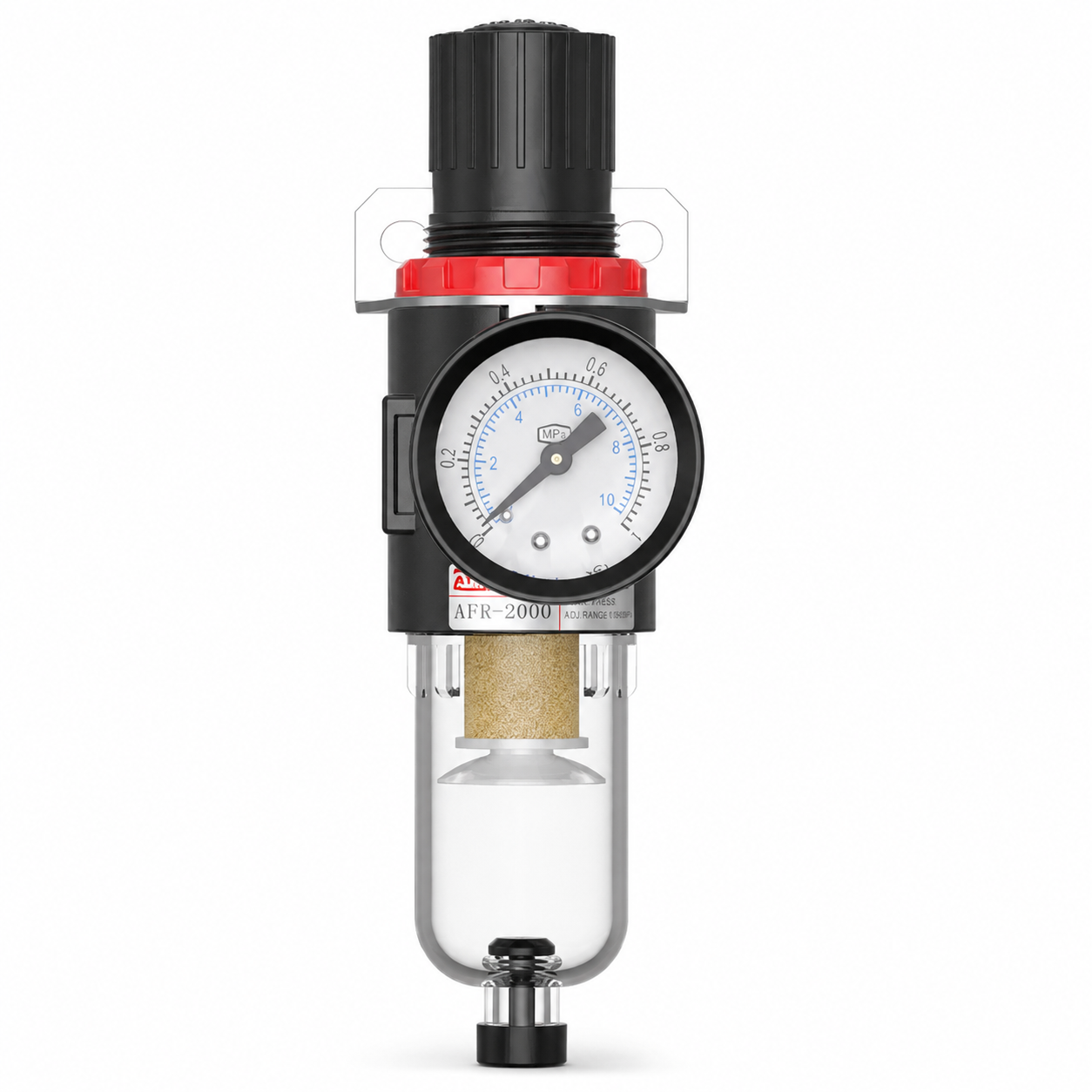

AirTAC AFR Series Filter Regulator
MOQDiscuss by model and quantity
Compact filter-regulator combining condensate removal and downstream pressure control.
Share the model, quantity, photos or known specifications for confirmation.
Product Overview
Overview
The AirTAC AFR series combines an air filter and pressure regulator in one A-series unit. It removes water and particles while maintaining the selected downstream pressure, reducing installation length compared with separate AF and AR components.
Product Range
Models & Options
- Model
- AFR2000
- Series
- AirTAC A Series
- Specific Product Type
- Combined air filter and pressure regulator
- Standard / Custom Product
- Standard / configurable
- Main Application
- Filtration and downstream pressure control
- Metric / Inch Standard
- PT / G / NPT thread options
- Available Size Range
- Port 1/4 in
- OEM / ODM Availability
- Available for suitable orders
Technical Data
Technical Specifications
| Function | Filter + pressure regulator |
|---|---|
| Fluid | Compressed air |
| Filtration | 40 µm or 5 µm |
| Adjustable pressure | Standard up to 0.9 MPa |
| Maximum pressure | 1.0 MPa |
| Proof pressure | 1.5 MPa |
Selection Support
Model Selection Guide
Common models: AFR1500 for 1/8 in and AFR2000 for 1/4 in. Confirm drain method, standard or low-pressure range, pressure gauge, filtration grade and PT/G/NPT thread. Confirm the complete manufacturer code and whether the supplied revision uses the C suffix.
Application Reference
Applications
- Point-of-use air preparation
- Valve and cylinder supply lines
- Compact pneumatic equipment
