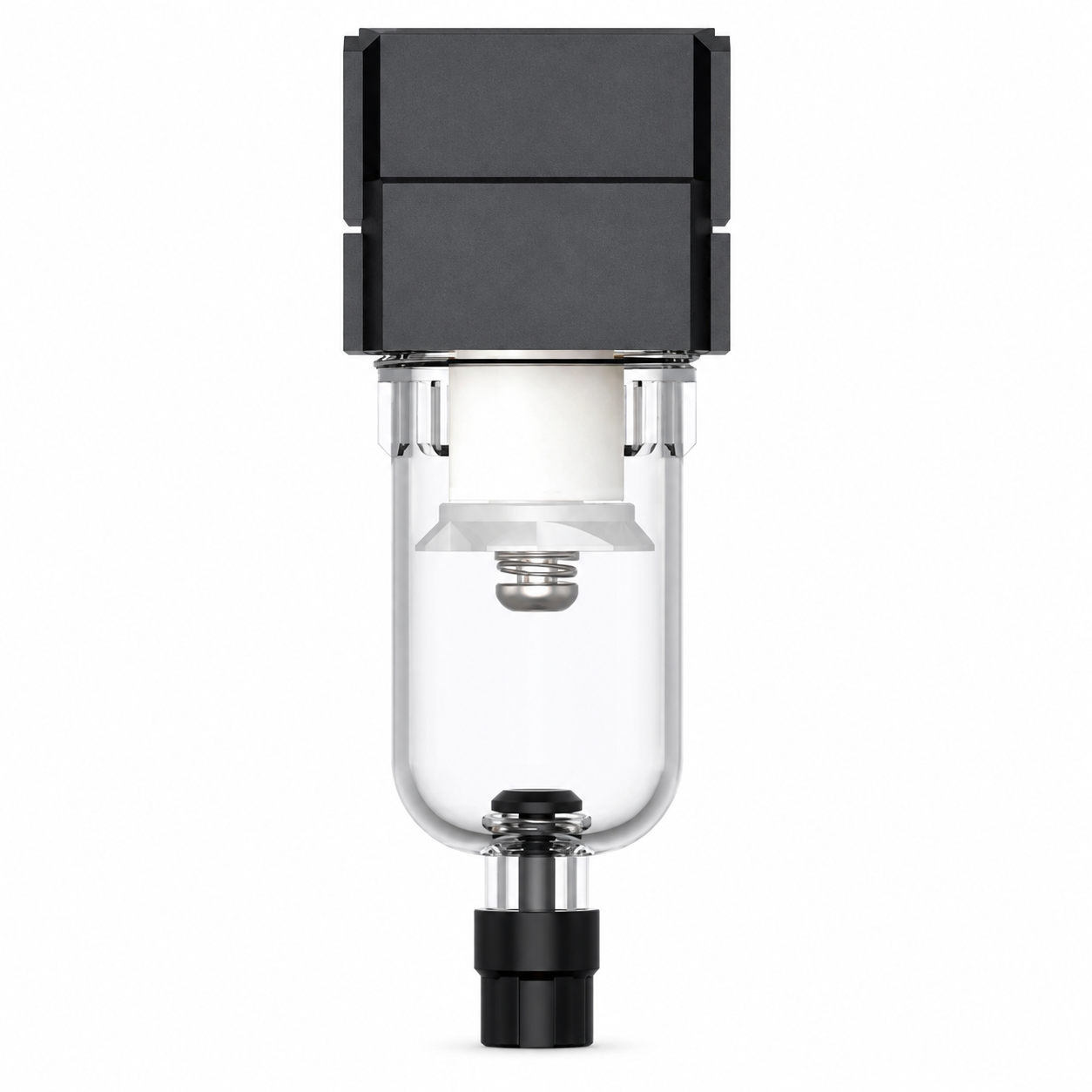

AirTAC AF Series Compressed Air Filter

MOQDiscuss by model and quantity

Compact compressed-air filter for removing condensate and solid particles from pneumatic lines.

Share the model, quantity, photos or known specifications for confirmation.

Product Overview

Overview

The AirTAC AF series is a compact standalone filter for A-series air preparation systems. It separates water and particles before downstream regulators, lubricators, valves and actuators.

Product Range

Models & Options

The models and ranges below belong to this product family. Final availability and configuration can be confirmed according to your enquiry.

Model Option 01

Model: AF1500
Series: AirTAC A Series
Specific Product Type: Compressed-air filter and water separator
Standard / Custom Product: Standard / configurable
Main Application: Particle and condensate removal
Metric / Inch Standard: PT / G / NPT thread options
Available Size Range: Port 1/8 in
OEM / ODM Availability: Available for suitable orders

Model Option 02

Model: AF2000
Series: AirTAC A Series
Specific Product Type: Compressed-air filter and water separator
Standard / Custom Product: Standard / configurable
Main Application: Particle and condensate removal
Metric / Inch Standard: PT / G / NPT thread options
Available Size Range: Port 1/4 in
OEM / ODM Availability: Available for suitable orders

Technical Data

Technical Specifications

Function	Air filter and water separator
Fluid	Compressed air
Filtration	40 µm or 5 µm
Maximum pressure	Up to 1.0 MPa by configuration
Proof pressure	1.5 MPa
Temperature	-5 to 70 °C

Selection Support

Model Selection Guide

Common models: AF1500 for 1/8 in and AF2000 for 1/4 in. Confirm drain type, 40 µm or 5 µm element and PT/G/NPT thread. Confirm the complete manufacturer code and whether the supplied revision uses the C suffix.
